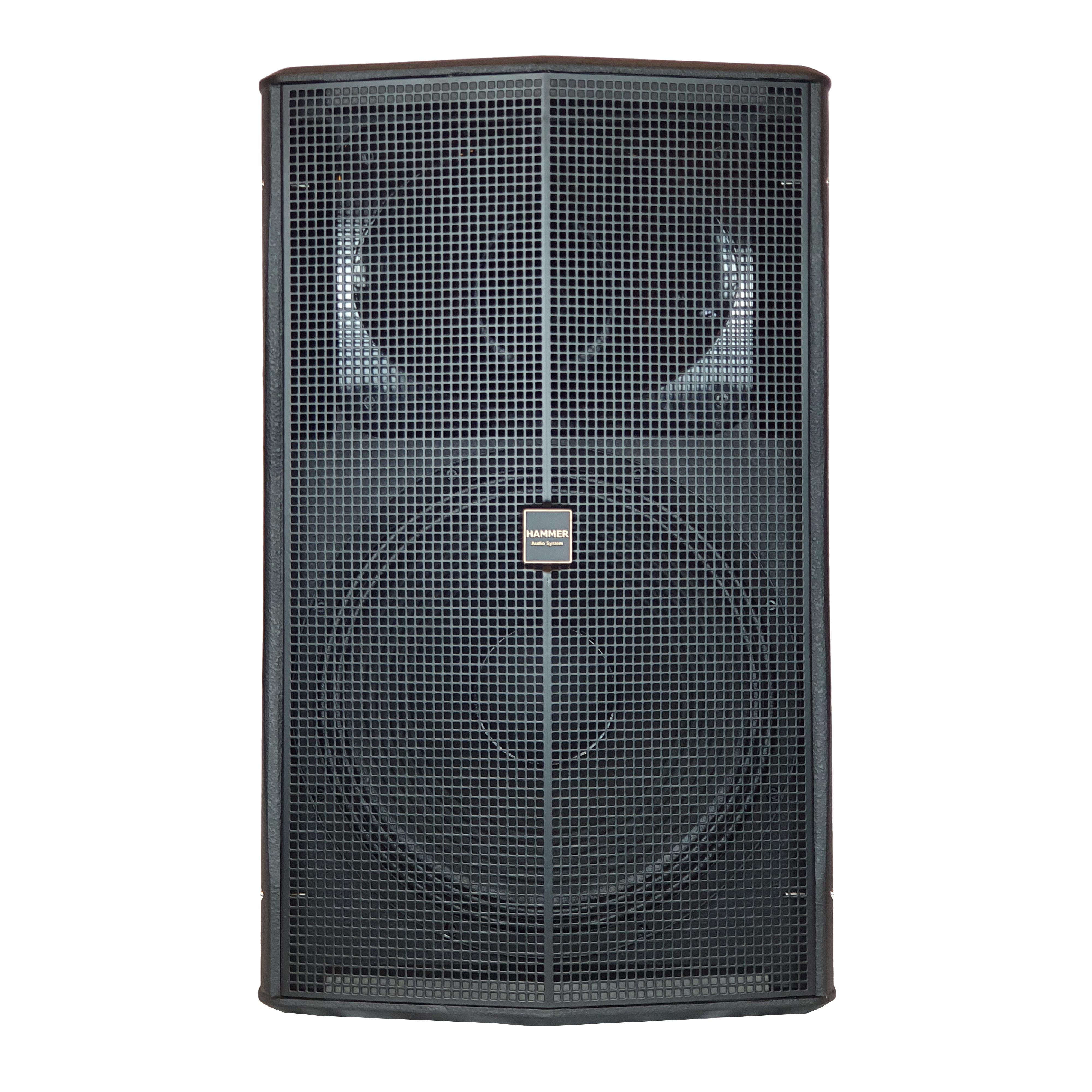

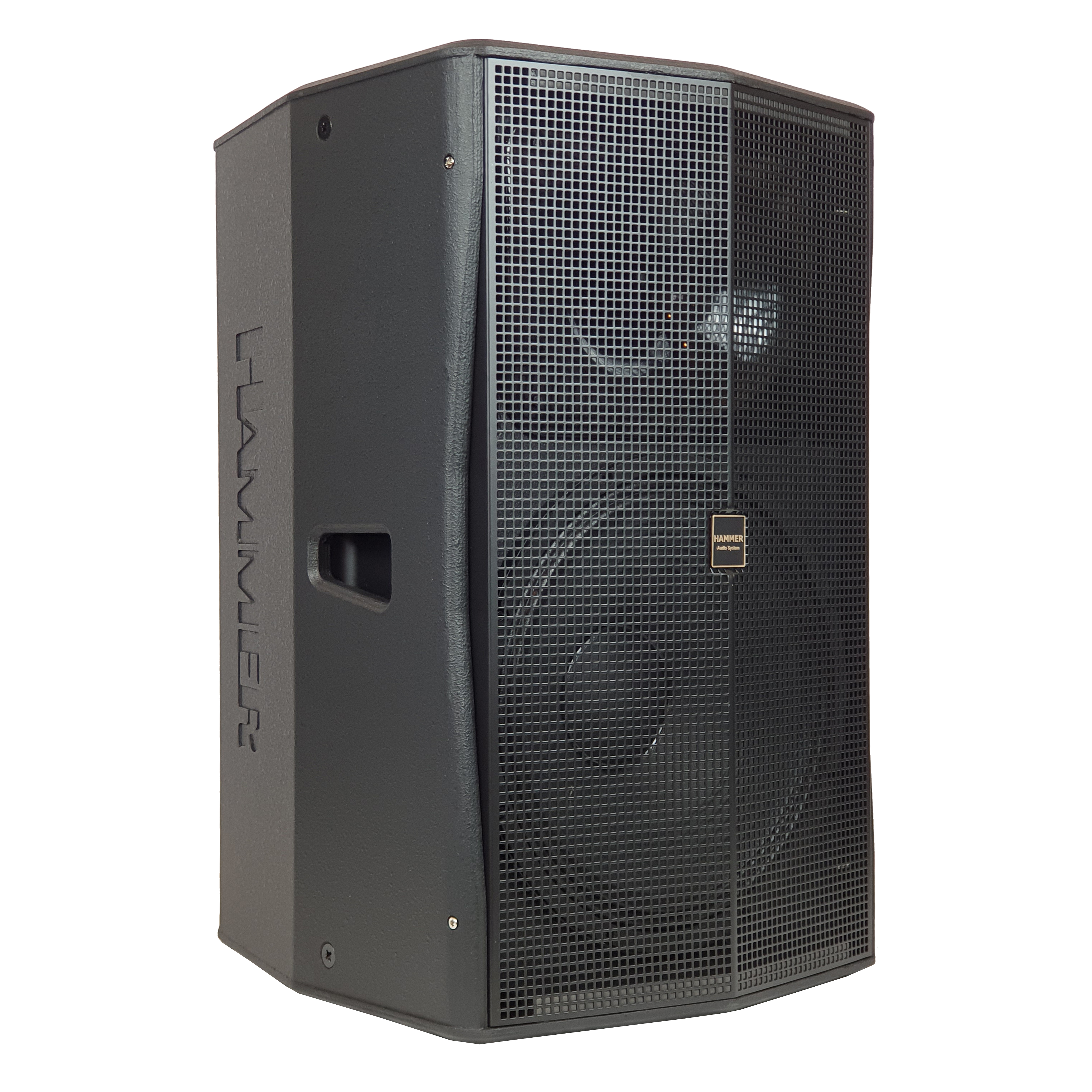

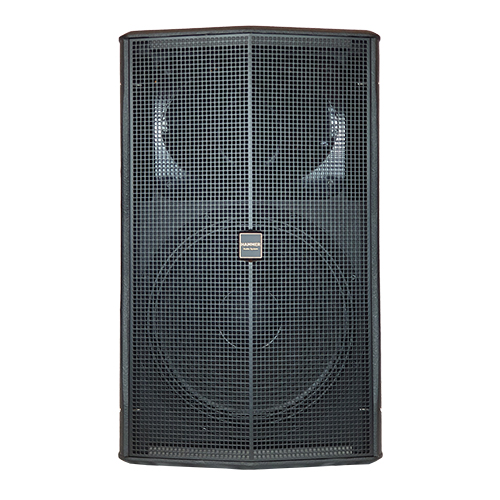

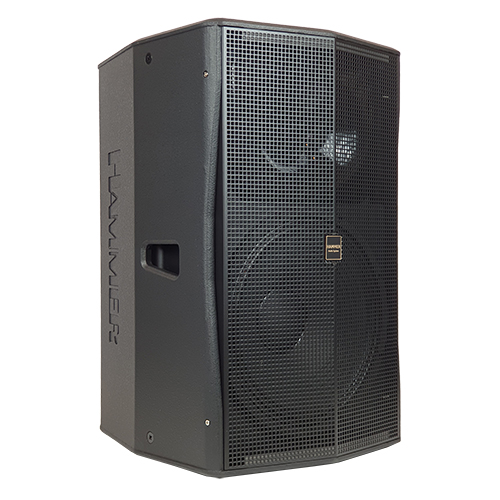

AK - 15NT
AK 15NT - It's a new model that's upgraded from the AK series.
Characteristics of AK Series are medium and large size compression driver, powerful magnet power, surround and low pitch unit for enduring such strong power, and deep and punching sound naturally expressing the whole frequency without biased on a certain frequency. Detailed network design made under tests for a long time provides excellent acoustic sound performance without getting lost in rich low pitched sounds. This allows audiences to immerse in the natural and clear performance. In addition, an enclosure made with plywood for specially bonded speaker is our special technology for controlling unnecessary resonance from speaker’s overtone.
* Performance stage
* Music Club
* Church
* Conference
SPECIFICATIONS
Model: AK-15NT (15″ 2way full range system)
Power Handling: 450W (Cont) / 900W (Prog) / 1800 (Peak)
Frequency Range: 48Hz -20KHz
Frequency Response: 52Hz -19KHz
Average Sensitivity: 101dB(W/m)
Max SPL: 133dB(PEAK/1M ±3dB)
Nominal Impedance: 8Ω
Nominal Directivity: 80º(H) x 40º(V)

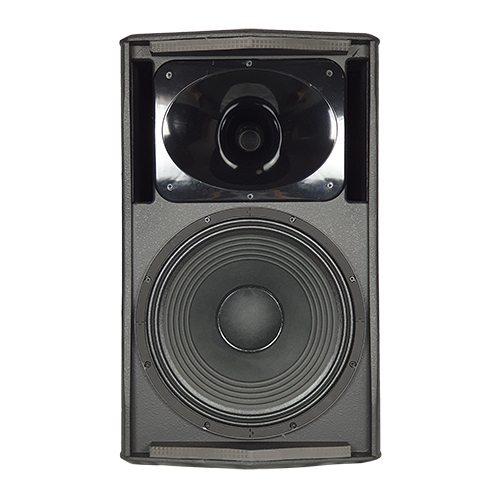

Low Frequency Driver: 100mm(4″) Compression driver Coil / 380mm(15″) woofer / 190mm Magnet
High Frequency Driver: 44mm(1.75″) Compression driver Coil
Flying Hardware: 20 x M10 points

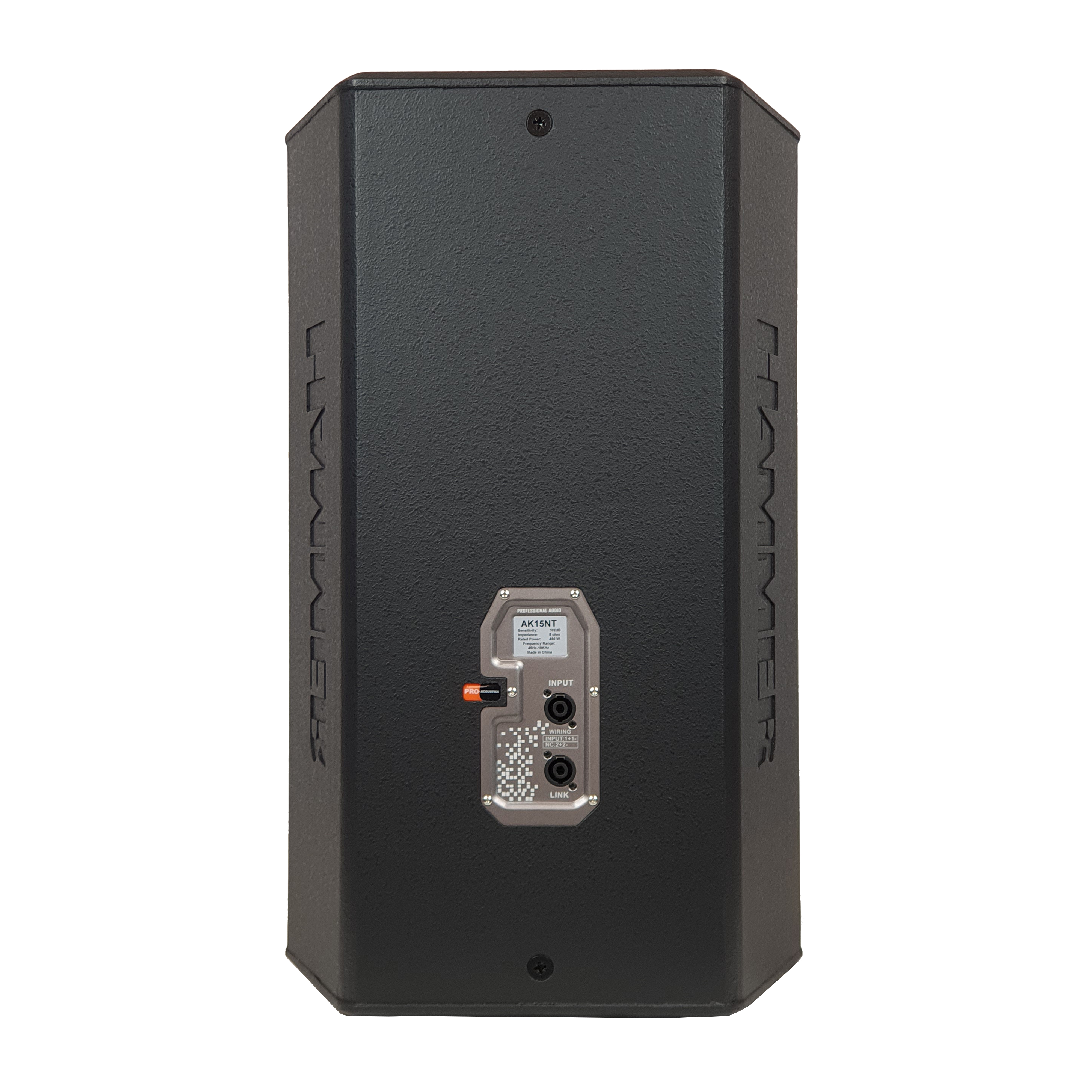

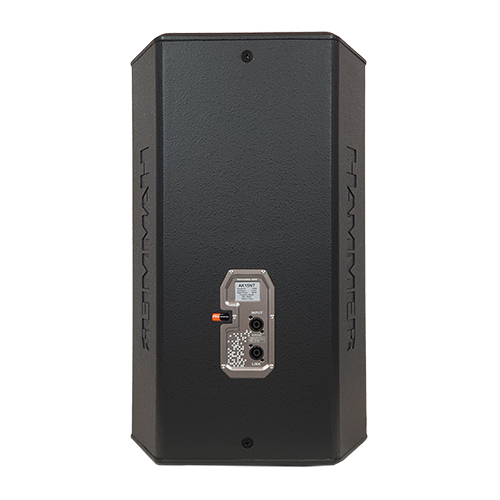

Connectors: 2 x Speakon® NL4MP (1+/1- Input & Link)
Pole Mount: 35mm pot

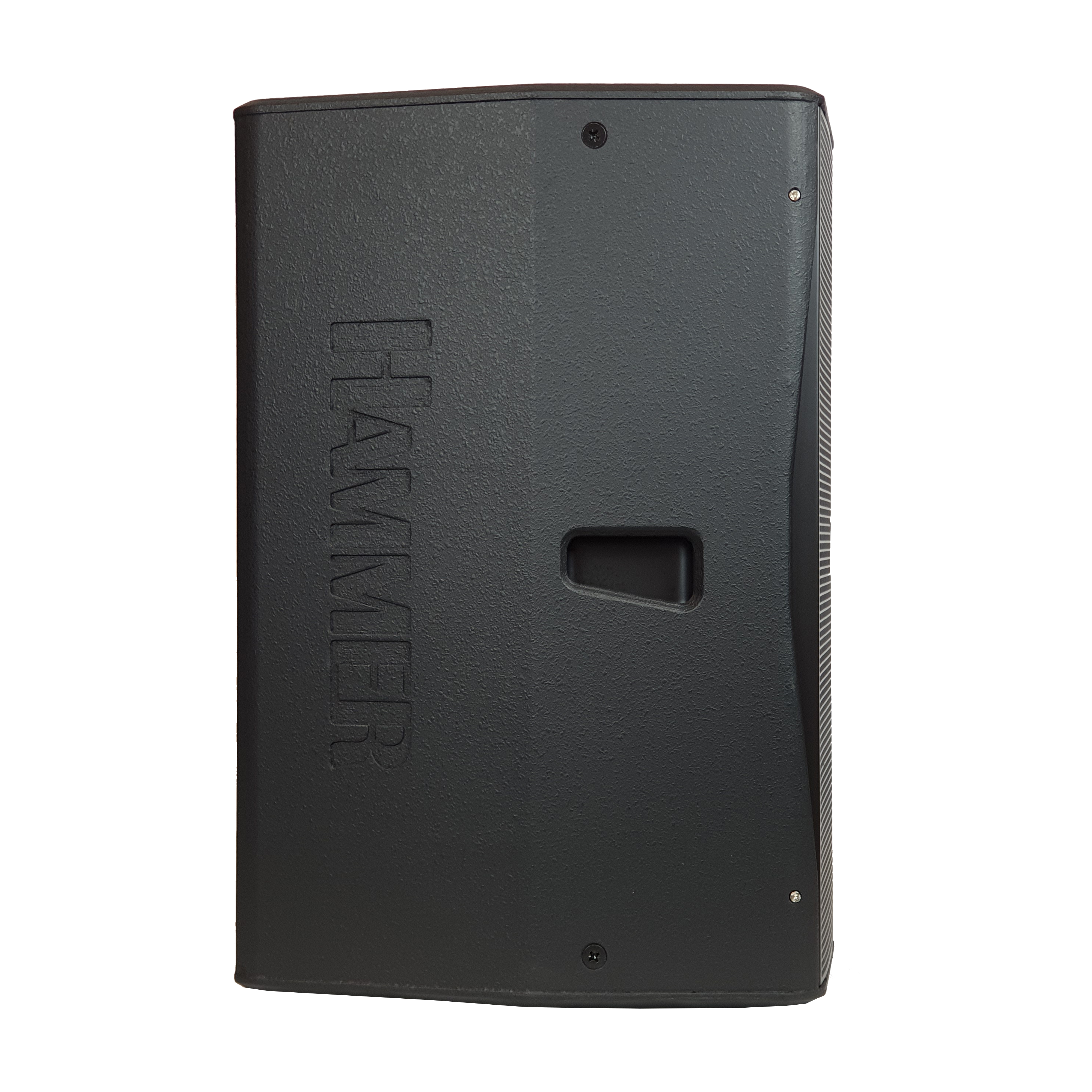

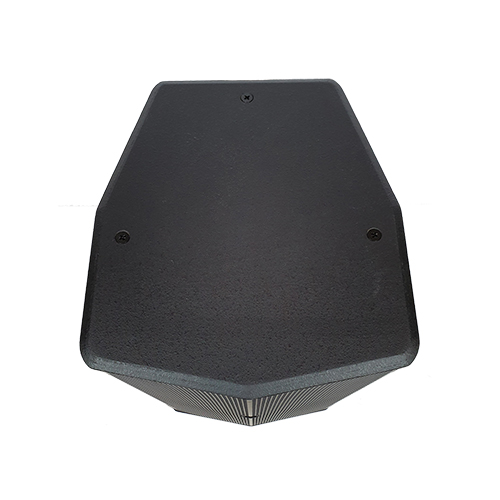

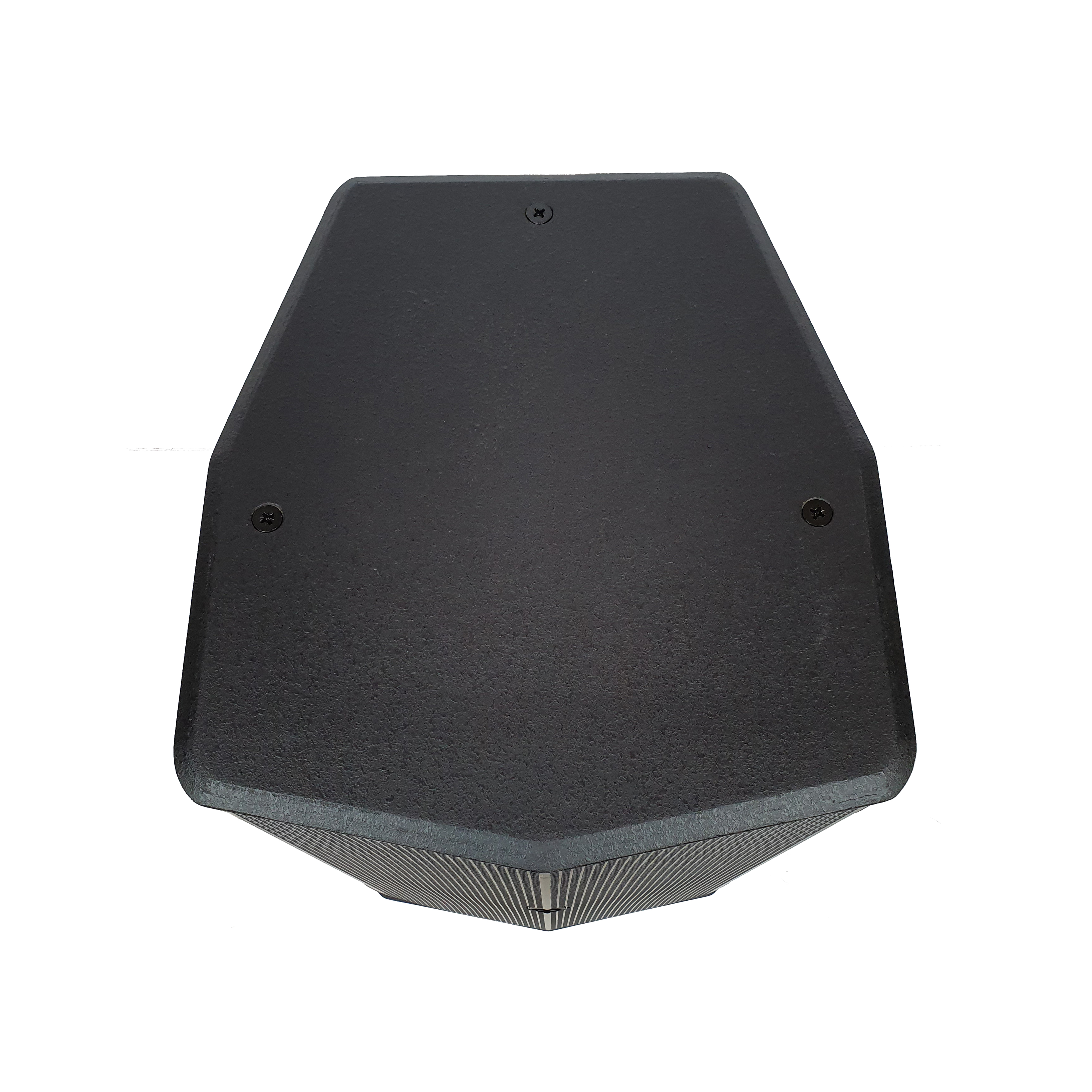

Enclosure: CNC made with tongue and grove assembly 15mm birch plywood
Finish: Touring grade textured black Paint coating
Dimensions: 440mm(W)×725mm(H)×510mm(D)
Weight: 32.2kg
